Touch panel type Gas Mixer
(Buffer tank specification)

CUBEGM-Xα Series

FCON

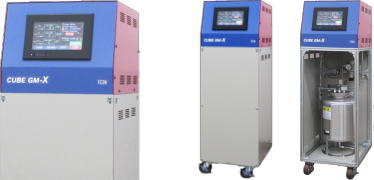

CUBEGMXα
Features

● [CUBEGM-Xα Seires (Buffer tank specification)] is an all-in-one unit which have Touch panel, PLC unit, Mass Flow Controller, Power supply, Valve, Check Valve Gas Mixer and Buffer tank.
● Program operation: Program operation is possible by setting the flow rate and time of each line.
● Alarm function: Alarm sound is notified if an error occurs by any upper / lower limit setting of each line flow rate.
● The pressure in the buffer tank is constantly monitored, and when the pressure falls below a fixed pressure, gas is automatically supplied to the buffer tank at the set mixing ratio. (Automatic stop and automatic restart pressure are fixed values, so please inquire in advance.)
● Simply connect the piping to the IN side and OUT side.
● Easy to move due to stoppered casters.
● [CUBEGM-Xα Series] is a device which supplies a mixed gas species of 2, 3, 4 to set up and control to any of the flow rate.
● Analog mass flow controller [1000 Series] is mounted as a standard feature.
● Mass flow controller, which flow control range is from 10SCCM to 50SLM, can be mounted as a standard. In other cases, please contact us.
● Can be reduced the cost when you use a Gas mixer than you purchase gas cylinders that has been prepared in the mixing ratio.
● It can be used for a wide range of applications such as analysis, environment, bio, packaging, medical, gas welding.
● Applicable gases : Inert gas. (For more information, please contact us)

Product Catalog
CUBEGM-Xα Series Catalog
◀ [CUBEGM-Xα Series] Catalog Download.
Specification
Model CUBEGM-X Series
Size CUBEGM-Xα2 : W350×D400×H1100(mm) ※Except protrusion / In the case of 10 L tank
CUBEGM-Xα3 : W430×D400×H1100(mm) ※Except protrusion / In the case of 10 L tank
CUBEGM-Xα4 : W510×D400×H1100(mm) ※Except protrusion / In the case of 10 L tank
Input power AC100-240V
Current consumption About 125VA ※In the case of 3 mass flow controllers equipped with
Flow rate control range 1 LINE : F.S.10SCCM~20SLM (However, the mixed gas flow rate must be less than 50 SLM)
Flow rate control MFC : C1000 Series or FCST1000L Series
Flow rate output signals 0-5VDC
INLET, OUTLET Valve Solenoid Valve
Leak Integrity ≦5×10-7Pa・m3/sec He
Pressure resistance 0.5MPa
Wetted surface material SUS316, PTFE, Fluoro-Rubber
(FCST1000L Series : Magnetic stainless steel, Fluoro-Rubber or Chloroprene rubber)
Standard fitting 1/4in.SWL (equivalent) ※For other fitting, please contact us.
Operating environment 5-50℃, 30-80%RH (Scope of accuracy guarantee : 15-35℃)
Accessory AC cable(2m), User's manual, Written guarantee

● May be changed items depend on the number of mass flow controller. The other specifications, please contact us.
